Aero/Vent™ Max Radioaerosol Lung Imaging System

Aero/Vent Max Radioaerosol Lung Imaging System #AV-500
Aero/Vent Max Radioaerosol Lung Imaging System #AV-500



Please scroll down to learn about Aero/Vent™ Max.

  • Product Overview
  • Radioaerosol Kit Features and Specifications
  • Special Kit for Ventilator Dependent Patients
  • Airflow Diagram
  • Lead Shield Features and Specifications
  • Ordering Information

Product Overview



 The two-tube Aero/Vent™ Max Radioaerosol Lung Imaging System is an upgrade to the legendary Aero/Vent™ Plus.  This easy-to-use system combines drop-in kit convenience with maximum shielding and the scuba-style Safety Shield™ Mouthpiece for unsurpassed protection.  Unidirectional airflow provides dosing in approximately 2-3 minutes, fully medicated breaths and the elimination of breathing resistance to improve throughput of critical patients.  Like the classic Aero/Vent™ Plus, the Aero/Vent™Max delivers sub-micron particles for superior radiotracer distribution, resulting in spectacular images.  Special kits for ventilator dependent patients are also available for this highly acclaimed system, designed exclusively for safety, reliability and performance.  Free trial, training materials and Appropriate Use Criteria are available.



Customers currently using the single tube Aero/Vent™ Plus are invited to experience the benefits of Aero/Vent™ Max or try the Aero/Vent™ Plus kit for ventilator dependent patients.  Please contact us for a free trial.



NOTE:  Aero/Vent™ Plus is such an exceptional product, a competitor made a low quality, knock-off kit.  Operating out of Marquette, Michigan, it utilizes Medi/Nuclear's® lead shield but is substantially inferior to Aero/Vent™ Plus in safety, quality, performance and image quality so its use is considered risky and is not recommended.  If you know of anyone with this product, please let us know and we'll gladly send a free trial of any genuine Medi'Nuclear® product.








Aero/Vent™ Max Radioaerosol Kit

#AV-500



Features and Benefits

  • Full patient dosing in just 2-3 minutes.
  • Excellent 100k-150k count image in just 1 minute.
  • Two tube, unidirectional airflow for rapid dosing, fully medicated breaths and no breathing resistance.
  • Particle Size: 0.28µM for deep lung deposition and clear, sharp images.
  • Lead shield can be used on a table top, or with the proprietary Universal Mobile Cabinet™ with optional swing arm for getting close to a patient.
  • HEPA filter with 99.9% trapping efficiency.
  • Tubing expands from 6 in. to 24 in. for easy patient positioning upright or supine.
  • Radioaerosol kits come with choice of scuba-style Safety Shield™ Mouthpiece or air-cushioned face mask.
  • Special kits for ventilator dependent patients are available in a small case quantity of just 6 each.
  • Kits come complete and ready to use.
  • Drop-in kit convenience and simple operation.
  • Activity required: 40 mCi in a minimum of 2 mL.
  • Kits may be purchased individually, by the case or at a reduced price for 2 or more cases.
  • Lead shield available at no charge with an opening order of 48 kits.
  • Free, no obligation trial available.

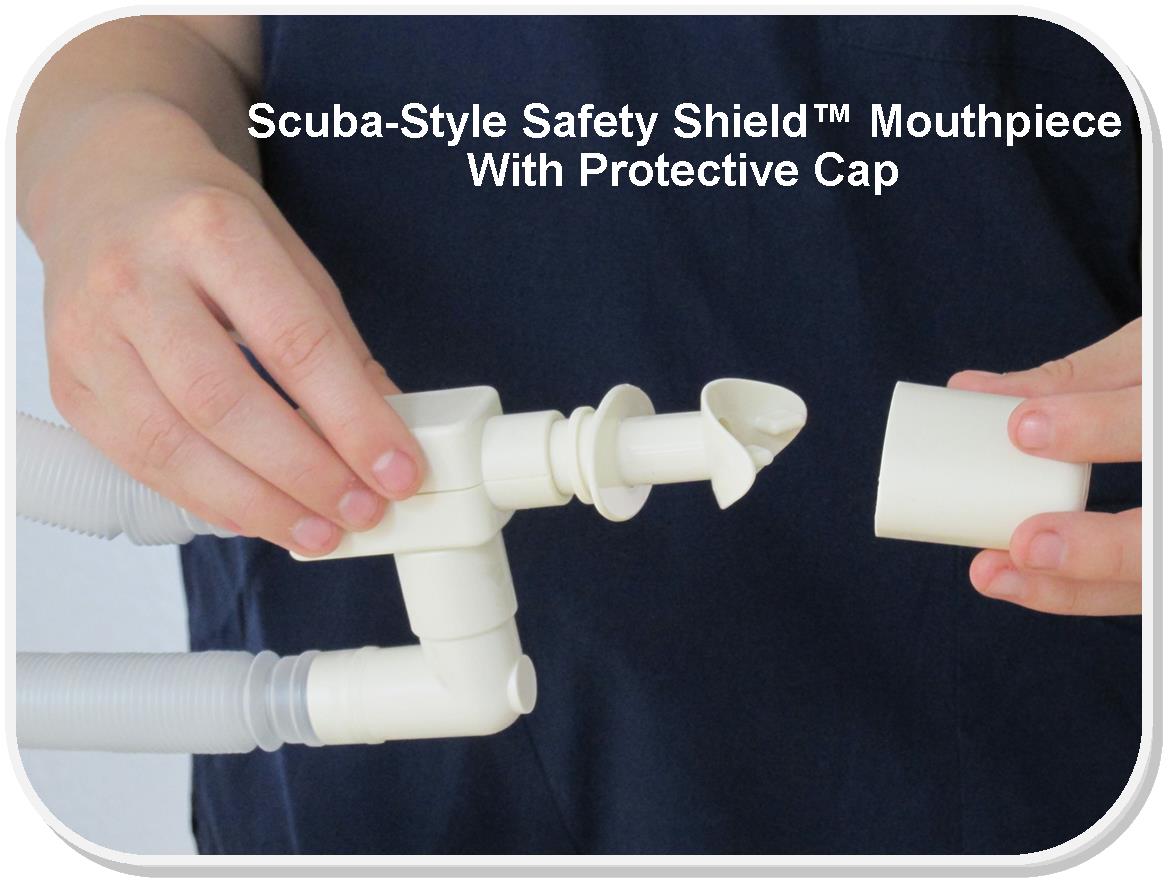

Safety Shield Mouthpiece

Specifications

Nebulizer:                                Medi/Nuclear® NEB-3A+ Jet Nebulizer

Nebulization Rate:                   0.16 mL/min

Standard Flow Rate:               10 L/min

Max. Reservoir Volume:          6 mL

Working Reservoir Volume:     2 mL

MMAD:                                    .28 micron

Particle Size Distribution:        0.2µM                      40.8%

                                                0.2µM to 1.0µM       57.1%

                                                1.0µM to 5.0µM         2.1%

                                                5.0µM                           0

Filter:                                       HEPA with 99.9% efficiency

Tubing:                                    Flexible tubing expands from 6 to 24 inches.

Patient Interface:                     Safety Shield™ Mouthpiece or air-cushioned face mask

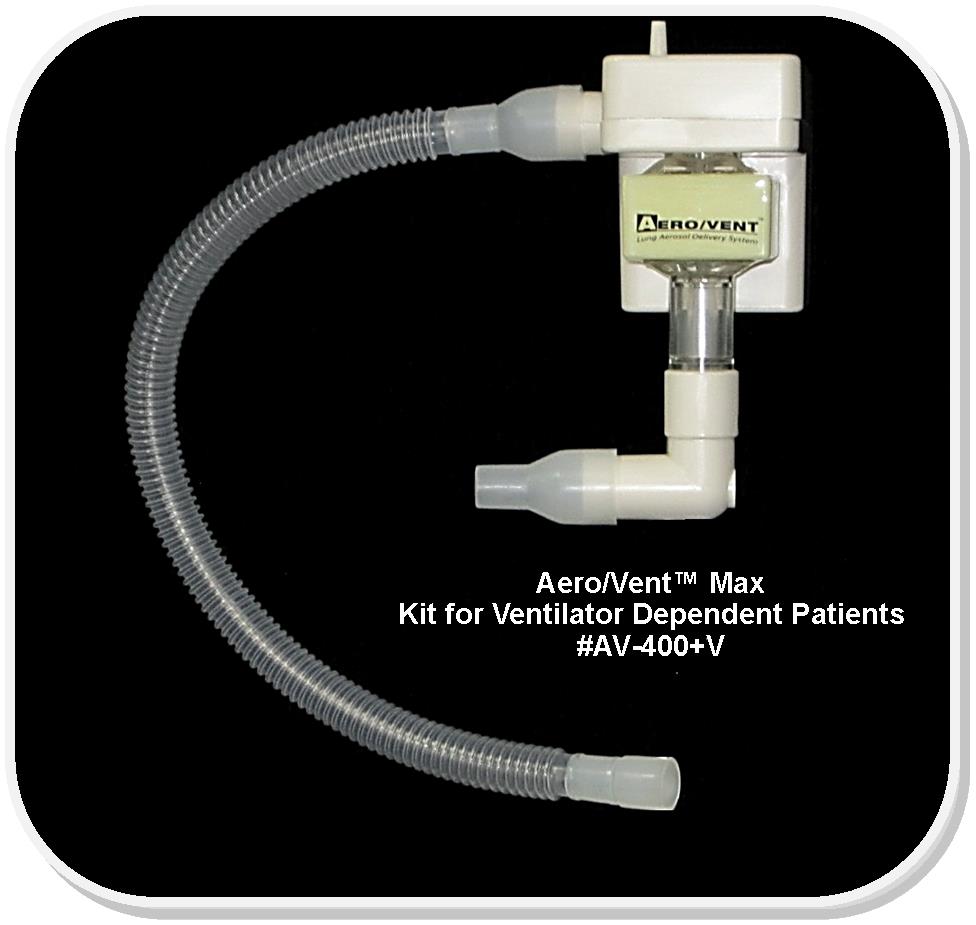

Aero/Vent™ Kits for Ventilator Dependent Patients

#AV-400+V

 Aero/Vent Max Kit for Ventilator Dependent Patients



Special radioaerosol lung imaging kits for patients on ventilators fit all standard 15mm endotracheal and tracheotomy tubes. Kits come complete and are used with the standard Aero/Vent™ Max lead shield.  Contact us for a free trial and training materials.

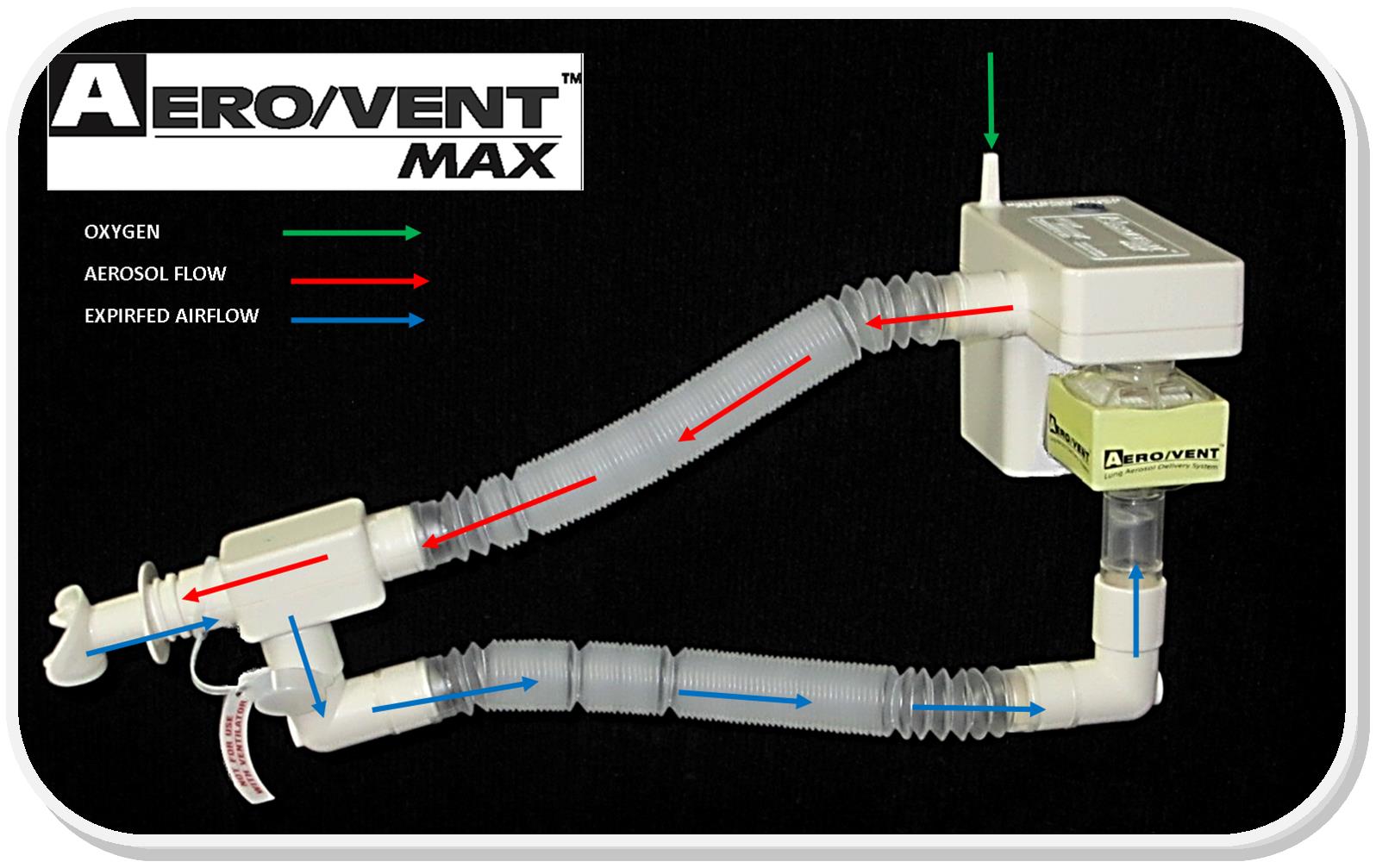

Aero/Vent™ Max Airflow Diagram

 Aero/Vent Max Airflow Diagram

  • As a patient inhales, medication from the nebulizer moves through the top tube and into the mouthpiece.
  • When the patient exhales, the exhalation is directed through the bottom tube and into a HEPA filter.
  • During exhalation, air continues to flow through the nebulizer into the top tube.
  • When the next breath is taken, the patient immediately inhales the medication that has filled the top tube.








Aero/Vent™ Max Lead Shield

#AV-501A



The Aero/Vent™ Max lead shield replaces the now retired Aero/Vent™ Plus lead shield and includes many of the same great features.  All Aero/Vent™ Plus and Aero/Vent™ Max kits may be used with the Aero/Vent™ Max lead shield.  For convenience, the Aero/Vent™ Max shield may be used on a table top or with the proprietary Universal Mobile Cabinet™ with optional swing arm for getting close to a patient.



Features and Benefits

  • Lead lined at or above recommended levels.
  • Nebulizer is fully contained inside kit and shielded by internal lead divider.
  • External lead lined nose piece provides protection at mouthport opening.
  • Oxygen tubing connects to leaded adapter to minimize risk of exposure at oxygen inlet.
  • Secure-fit oxygen tubing eliminates the possibility of air leakage for more reliable and consistent results.
  • Removable stand for use with Universal Mobile Cabinet™.
  • Aluminum base with rubber feet to protect surfaces.
  • Drop-in kit installation for ease of use.
  • Powder coated exterior for ease of cleaning.
  • Lead shield available at no charge with opening order of just 48 radioaerosol kits.



Specifications



Material:            Aluminum with Powder Coating

Weight:             16 1/2  lbs.

Dimensions:     8 in. L x 6 1/2 in. D x 9 5/8 in. H

Lead Lining:     Fully lead lined.

                         Lead lined nose piece around mouthport opening.

                         Internal lead divider shields nebulizer.



Aero/Vent Max Kit with Face Mask #AV-500








Ordering Information



Catalog           No.

                       Product Description

  Qty

AV-400+

Aero/Vent™ Plus Kit, with Single Tube, HEPA Filter and scuba-style Safety Shield™ Mouthpiece

  24/cs

AV-400+M

Aero/Vent™ Plus Kit with Single Tube, HEPA Filter and Air-Cushioned Mask

  24/cs

AV-400+V

Aero/Vent™ Plus Kit for Ventilator Dependent Patients

   6/cs

AV-500

Aero/Vent™ Max Kit with Two Tubes, HEPA Filter and scuba-style Safety Shield™ Mouthpiece

  24/cs

AV-500M

Aero/Vent™ Max Kit with Two Tubes, HEPA Filter and Air-Cushioned Mask

  24/cs

AV-501A

Aero/Vent™ Max Lead Shield

  Each

IV-605

Oxygen Tubing with Secure-Fit Connector

  3/pk

UV-204

Universal Mobile Cabinet™

  Each

UV-204-SA

Universal Mobile Cabinet™ with Swing Arm

  Each
