Aero/Vent™ Jr. Radioaerosol Lung Imaging System

Aero/Vent Jr. Radioaerosol Lung Imaging System #AV-100H
Aero/Vent Jr. Radioaerosol Lung Imaging System #AV-100H



Please scroll down to learn about Aero/Vent™ Jr.

  • Product Overview
  • Radioaerosol Kit Features and Specifications
  • Special Kit for Ventilator Dependent Patients
  • Airflow Diagram
  • Lead Shield Features and Specifications
  • Product Comparison
  • Ordering Information



Product Overview



The two-tube Aero/Vent® Jr. Radioaerosol Lung Imaging System features simple operation, 2-3 minute dosing, outstanding image quality, convenience and choices.  With the Aero/Vent® Jr. you're able to work safely where you want and how you want.  The lead shield may be pole mounted, used on a table top or with the Universal Mobile Cabinet™ with optional swing arm for getting close to a patient.  Radioaerosol kits come complete with choice of straight mouthpiece, scuba-style Safety Shield™ Mouthpiece, air-cushioned face mask or specially made for ventilator dependent patients.  The popular Aero/Vent™Jr. is compact in size, making it suitable for on site or mobile imaging, and gigantic in value.  Free trial, training materials and Appropriate Use Criteria (AUC) are available.










Aero/Vent™ Jr. Radioaerosol Kit

#AV-100H



Features and Benefits

  • Full patient dosing in less than 3 minutes.
  • Excellent 100k-150k count image in just 1 minute.
  • Two-tube, unidirectional airflow for rapid delivery, fully medicated breaths and no breathing resistance.
  • Particle Size: 0.28µM for superior lung deposition and exceptionally clear images.
  • Lead shield can be pole mounted, used on the table top, or with the proprietary Universal Mobile Cabinet™ with optional swing arm for getting close to a patient.
  • HEPA filter with 99.9% trapping efficiency.
  • Tubing expands 6-24 inches for easy patient positioning upright or supine.
  • Radioaerosol kits come with choice of standard mouthpiece, scuba-style Safety Shield™ Mouthpiece or air-cushioned face mask.
  • Special kits for ventilator dependent patients are available in a small case quantity.
  • All kits come complete and ready to use.
  • Easy set-up and operation.
  • Activity required: 40 mCi in a minimum of 2 mL.
  • Kits may be purchased individually, by the case or at a reduced price for 2 or more cases.
  • Lead shield is available at no charge with opening order of just 48 kits.
  • Free, no obligation trial available.

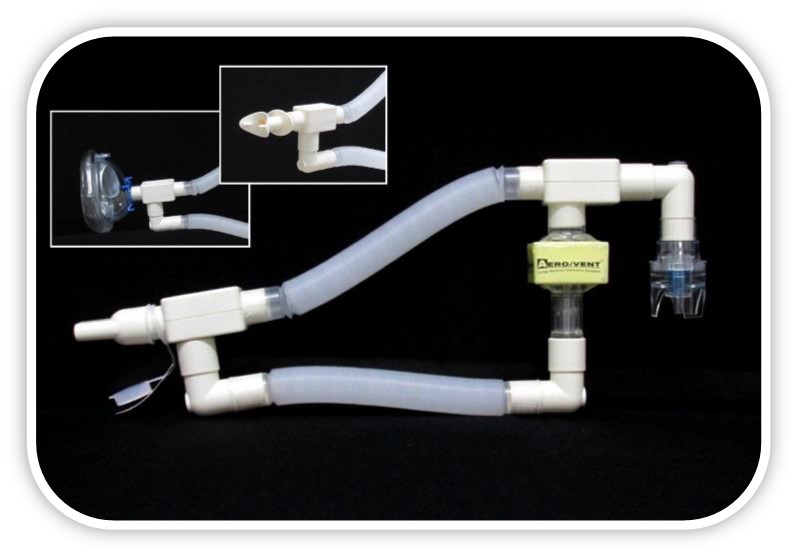

 Aero/Vent Jr. Patient Interface Options



Specifications

Nebulizer:                                Medi/Nuclear® NEB-3A+ Jet Nebulizer

Nebulization Rate:                   0.16 mL/min

Standard Flow Rate:               10 L/min

Max. Reservoir Volume:          6 mL

Working Reservoir Volume:     2 mL

MMAD:                                    0.28 micron

Particle Size Distribution:        <0.2µM                       40.8%

                                                0.2µM to 1.0µM           57.1%

                                                1.0µM to 5.0µM             2.1%

                                                ˃5.0µM                             0

Filter:                                       HEPA with 99.9% efficiency

Tubing:                                    Flexible tubing expands from 6 to 24 inches

Patient Interface:                    Straight mouthpiece, Safety Shield™ Mouthpiece,

                                                or air-cushioned face mask

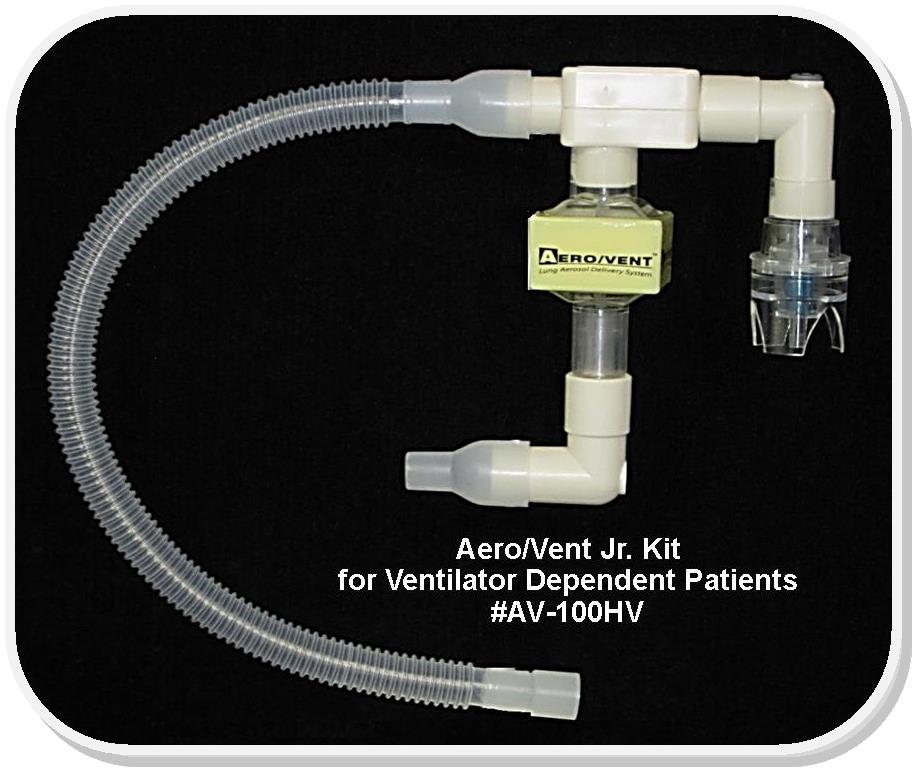

Aero/Vent™ Jr. Kit for Ventilator Dependent Patients

#AV-100HV


Special Kit for Ventilator Dependent Patients

Special radioaerosol lung imaging kits for patients on ventilators fit all standard 15mm endotracheal and tracheotomy tubes.  Kits come complete in small cases of 6 each, and are used with the standard Aero/Vent™ Jr. lead shield.  Contact us for a free trial and training materials.

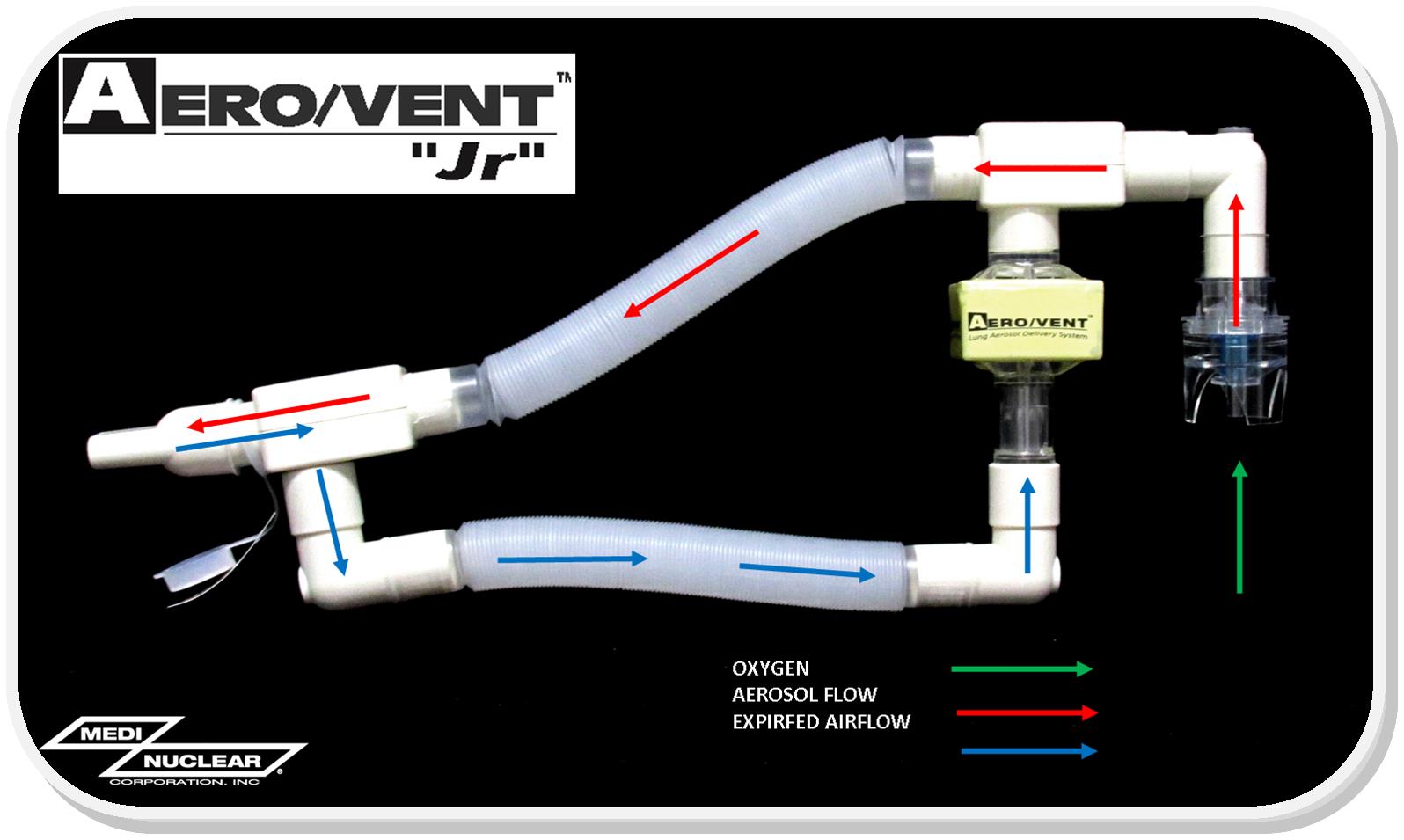

Aero/Vent™ Jr. Airflow Diagram



 Aero/Vent Jr. Airflow Diagram

  • As a patient inhales, medication from the nebulizer moves through the top tube, and into the mouthpiece.
  • When the patient exhales, the exhalation is directed through the bottom tube and into a HEPA filter.
  • During exhalation, air continues to flow through the nebulizer into the top tube.
  • When the next breath is taken, the patient immediately inhales the medication that has filled the top tube.





Aero/Vent™ Jr. Lead Shield

#AV-101A



The compact Aero/Vent™ Jr. Lead Shield may be pole mounted, used on a table top, or with the proprietary Universal Mobile Cabinet™ with optional swing arm for getting close to a patient.



Features and Benefits

  • Full lead lining, including oxygen inlet block, at or above recommended levels.
  • Lead cylinder inside shield surrounds nebulizer for extra protection.
  • Pole mount, use on a table top, or with customized mobile cabinet.
  • Aluminum base for stable table top use.
  • Rubber feet on table top stand protects surfaces.
  • Removable table top stand for pole mounting or use with Universal Mobile Cabinet™.
  • Internal pressure port for convenient kit installation.
  • Secure-fit oxygen tubing eliminates the possibility of air leakage for more reliable and consistent results.
  • Powder coating for ease of cleaning.
  • Lead shield available at no charge with opening order of just 48 radioaerosol kits.



Specifications

Material:         Aluminum with Powder Coating

Weight:           Pole Mounted Unit, 4 lbs.

                       Pole Mounted Unit with Table Top Stand, 11 ½ lbs.

Dimensions:   8 in. L x 6 ½ in. D x 10 3/16 in. H

Lead Lining:   Fully lead lined interior

                       Lead lined oxygen inlet block

                       Lead cylinder around nebulizer

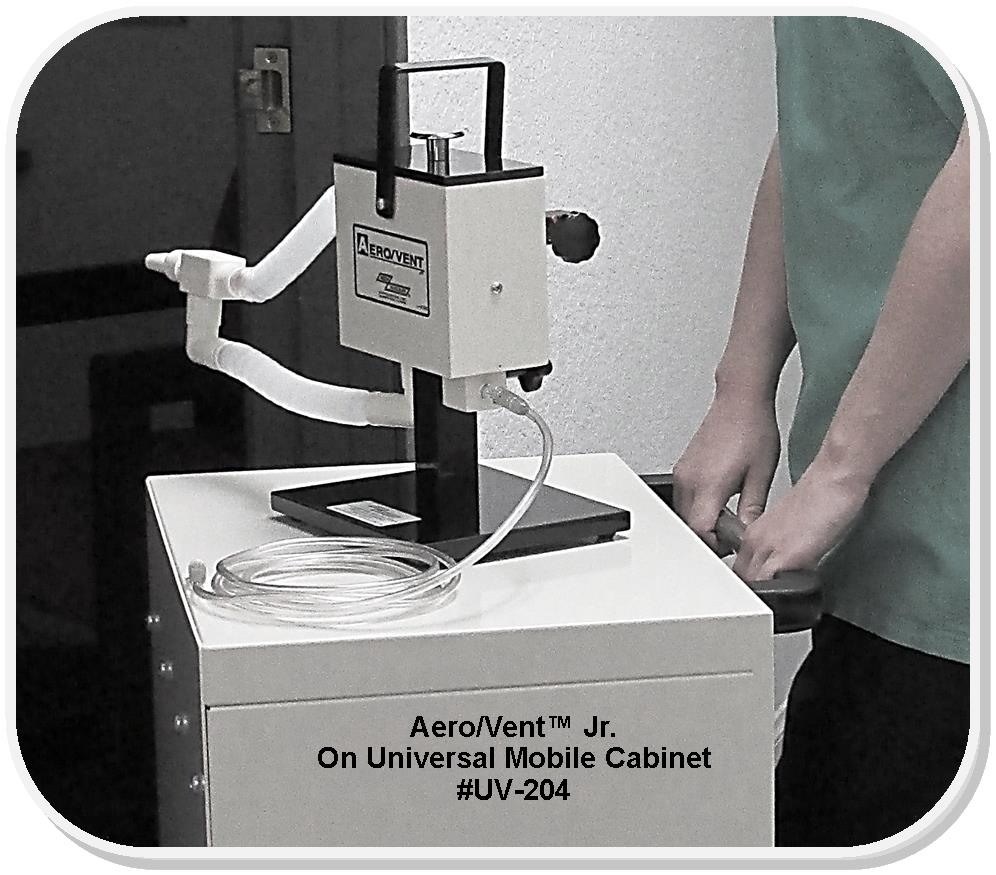

        Aero/Vent Jr. on Universal Mobile Cabint #UV-204








Aero/Vent™ Jr. Compared to the Competition





Insta/Vent™        Plus

Aero/Vent™          Jr.

 VentiScan™            IV

AeroTech®          I

   Swirler®

Number of    Tubes

      Two

      Two

      Single

    Two

   Single

Patient Dosing Time  in Minutes

       1-2

       2-3

         5-6

       3-5

       3-5

Mean Particle Size (MMAD)

    0.28 µM

   0.28 µM

      0.5 µM

    0.5 µM

    0.5 µM

Filter

    HEPA

    HEPA

      HEPA

  Bacteria

  Bacteria

Radioaerosol Kit Packaging

   24/case

   24/case

     25/case

    25/case

    20/case

Free Trial Offer

     Yes

      Yes

       Yes

       Yes

      Yes

Conserving Reservoir

     Yes

      No

        No

        No

       No

Complete Kits Sold With Choice of      Mouthpiece or Face Mask

     Yes

     Yes

        No

        No

      No

Suitable for SPECT using Various Isotopes

      Yes

      Yes

       *NA

     *NA

     *NA

Ventilator Kits Available

      Yes    Complete Kit

      Yes          Complete Kit

      Yes              Adapter Kit

     Yes    Adapter Kit

      Yes          Connector

Ventilator Kit Packaging

     6/case

     6/case

     25/case

     5/pack

   20/case

Kits Purchased for Free Lead Shield

      48

      48

       75

     *NA

     *NA

Style of Lead Shield

   Table Top

     Pole              Mount/         Table Top

 Pole Mount

  Table Top

     Pole Mount/Table        Top



NOTE:  Product information acquired from corporate websites and marketing information available to the public.

*NA was used where information was unavailable or unknown.

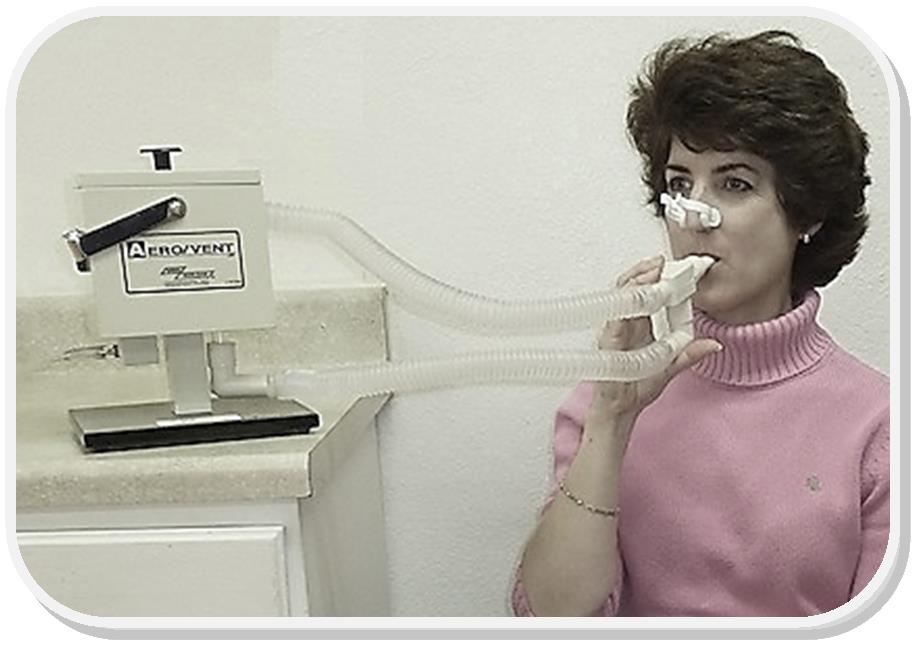

 Aero/Vent Jr. - Patient Use








Ordering Information



Catalog No.

                      Product Description

Qty/Cs

AV-100H

Aero/Vent™ Jr. Kit, with Two Tubes, HEPA Filter and Standard Mouthpiece

   24/cs

AV-100HM

Aero/Vent™ Jr. Kit with Two Tubes, HEPA Filter and Air-Cushioned Mask

   24/cs

AV-100HS

Aero/Vent™ Jr. Kit with Two Tubes, HEPA Filter and scuba style Safety Shield™ Mouthpiece

   24/cs

AV-100HV

Aero/Vent™ Jr. Kit for Ventilator Dependent Patients

    6/cs

AV-101A

Aero/Vent™ Jr. Lead Shield for Pole Mounted or Table Top Use

   Each

IV-605

Oxygen Tubing with Secure Fit Connector

    3/pk

UV-204

Universal Mobile Cabinet™

   Each

UV-204-SA

Universal Mobile Cabinet™ with Swing Arm

   Each
